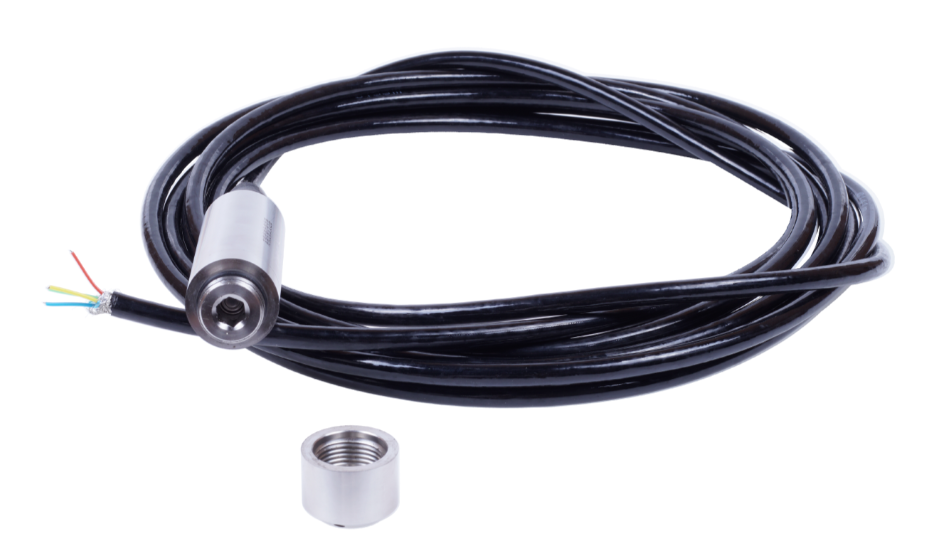

Seeed Studio S-LL-01A Liquid Level Sensor | 314990619
🚀 High-performance: Offers anti-interference and long-term stability for reliable operation.
🛡️ Robustness: Features anti-corrosion, durable, and stable construction for extended use.
🧼 User-friendly: Designed with an anti-blocking design for easy cleaning and maintenance.
🔹 Widely-applicable: Provides 0.5~4.5 V transmission output, compatible with digital displays, PLC, inverters, recorders, and other instruments.
☔ Industry-grade: Boasts an IP68 rating, ensuring durability and waterproofing suitable for outdoor severe environments.
📄 Certifications: FCC, CE, and RoHS certifications ensure compliance with industry standards.
The Liquid Level Sensor accurately measures the height of water or other liquids and converts it into a voltage signal, compatible with data loggers or devices featuring analog voltage input ports. Equipped with a built-in silicon piezoresistive core, it offers high sensitivity and converts millivolt signals into standard voltage signals, facilitating connection to computers, control instruments, or PLCs.
Compact and lightweight, the sensor is easy to install and features a sealed stainless steel probe suitable for water, oil, and mild-corrosive environments. With high anti-vibration and anti-impact performance, it finds applications in process control, aviation, aerospace, automobile, medical equipment, HVAC, and more.
Specifications
- Measurement range: 0~5 meters
- Cable length: 5.3 meters
- Output signal: 0.5~4.5 V
- Accuracy: ±0.25% F.S
- Zero temperature drift: ±0.03% F.S/°C
- Sensitivity temperature drift: ±0.03% F.S/°C
- Long-term stability: ≤0.2% F.S/year
- Response time: 5 ms (≤90% F.S)
- Measurement liquid: Slight corrosive liquid (water, edible oil, etc.)
- Power supply: 5 V DC
- Overload capacity: 200% F.S
- Compensation temperature: –10 °C ~ 70 °C
- Medium temperature: –40 °C ~ 80 °C
- Storage temperature: –40 °C ~ 85 °C
- Material: 304 stainless steel shell, 316 L stainless steel core, special rubber-insulated cable
- IP rating: IP68
- Device weight: 670 g
- Certifications: CE, FCC, RoHS
Model Number | S-LL-01A |
---|---|
Brand | Seeed Studio |
Dimensions | ⌀20 mm × 530 mm (⌀0.79 in. × 20.87 in.) |
Temperature | Operating: –40 °C to 80 °C (–40 °F to 176 °F) Storing: –40 °C to 85 °C (–40 °F to 185 °F) |
Product Type | Sensor |
Application | Condition Monitoring |
Sensor Type | Liquid Level |
Power | 0.5 to 4.5 V |
